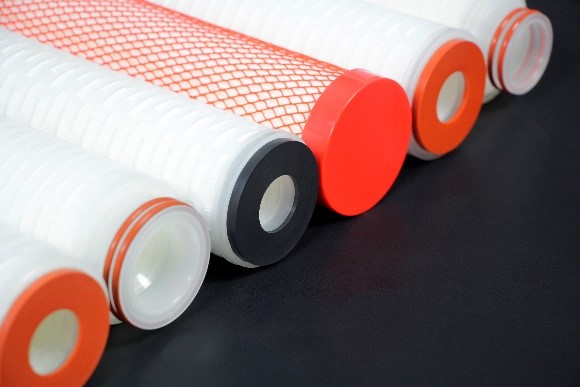

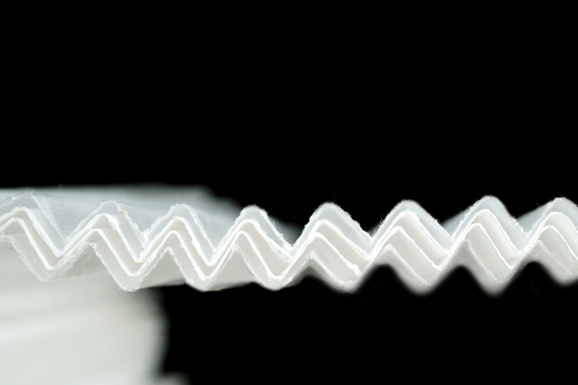

Absolute Pleated Filter Cartridge

Materials of Hydrophilic Membrane Filter: PP,Glass Fiber, PES, PVDF, PA, PTFE, etc

Materials of Core: PP, PP reinforced, Stanless Steel

Pore size: 0.05 to 20 µm

Lengths: 2 ½ – 40”

Adapters: DOE with endcap, 222/Flat, 222/Fin, 226/Flat, 226/Fin

Optional: Futher adapters and O-ring's material on request

Nominal Pleated Filter Cartridge

Materials of Filter Media: PP,Glass Fiber

Materials of Core: PP, PP reinforced, Stanless Steel

Fineness: 0.1 to 100 µm

Lengths: 2 ½ – 40”

Adapters: DOE with endcap, 222/Flat, 222/Fin, 226/Flat, 226/Fin

Optional: Futher adapters and O-ring's material on request

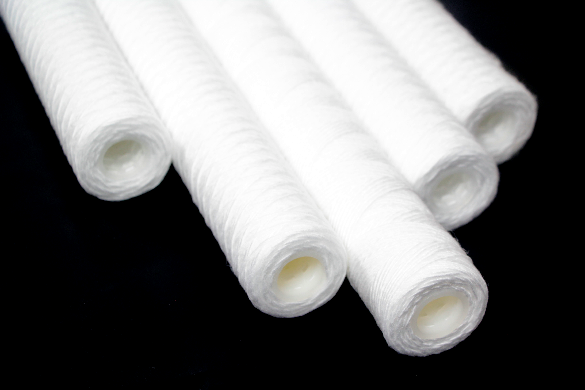

String Wound Filter Cartridge

Materials of Filter Media: PP,Glass Fiber, Cotton

Materials of Core: PP, Stanless Steel

Fineness: 0.5 to 100 µm

Lengths: 10 – 40”

Adapters: DOE with/without endcap, 222/Flat, 222/Fin, 226/Flat, 226/Fin

Optional: Custom dimensions, futher adapters and O-ring's material on request

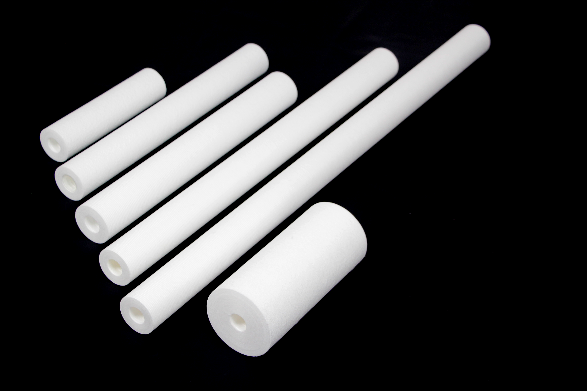

Melt Blown Filter Cartridge

Materials of Filter Media: PP

Materials of Core: PP

Fineness: 0.5 to 100 µm

Lengths: 10 – 40”

Adapters: DOE with/without endcap, 222/Flat, 222/Fin, 226/Flat, 226/Fin

Optional: Custom dimensions, futher adapters and O-ring's material on request

Actived Carbon Filter Cartridge

Materials: viên, nén khối, Hard Coal, Coconut Shell, tẩm

Lengths: 10 – 40”

Adapters: DOE with, 222/Flat, 222/Fin, 226/Flat, 226/Fin

Optionals: Cartridge with cage/net, further adapters and O-ring's materials on request

Metal Filter Cartridge

Materials: SS304/SS316 mesh pleated/powder, Titanium powder

Fineness: 5 – 100 micron

Lengths: 10 – 40”

Adapters: DOE with/without endcap, 222/Flat, 222/Fin, 226/Flat, 226/Fin, 1” BSP Threaded, 1/2" BSP Threaded
